Practice: a complete mini-project

Today's project brief

The plan for today

This order never changes. Write a text cell above every step explaining what and why.

Step 1: look at the data

Each image is 8×8 pixels, stored as 64 numbers from 0 (white) to 16 (black). The label is the digit.

import matplotlib.pyplot as plt
from sklearn.datasets import load_digits
digits = load_digits()
X, y = digits.data, digits.target
print(X.shape)
fig, axes = plt.subplots(2, 5, figsize=(8, 3.6))
for ax, img, label in zip(axes.ravel(), digits.images, y):
    ax.imshow(img, cmap="gray_r")
    ax.set_title(label)
    ax.axis("off")
plt.show()

(1797, 64)

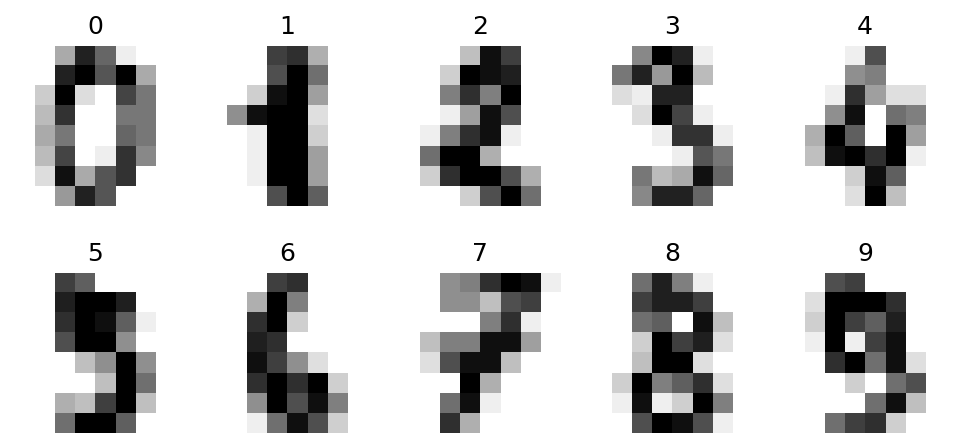

Step 1: look at the data: the result

Step 1 (continued): are the classes balanced?

import numpy as np
print(np.bincount(y))

[178 182 177 183 181 182 181 179 174 180]

Step 2 and 3: split, then a baseline

Split once, with stratify, and put the test set away · Baseline: always guess the most common digit · About 10%: the score to beat · Every result in the report is compared with this

from sklearn.model_selection import train_test_split
from sklearn.dummy import DummyClassifier
X_tr, X_te, y_tr, y_te = train_test_split(
    X, y, test_size=0.25, random_state=0, stratify=y)
base = DummyClassifier(strategy="most_frequent").fit(X_tr, y_tr)
print(round(base.score(X_te, y_te), 3))

0.102

Step 4: compare candidate models with cross-validation

Three models, same folds, training data only · k-NN inside a scaling pipeline · A tree and Naive Bayes for comparison · Pick the best mean for tuning

from sklearn.model_selection import cross_val_score
from sklearn.pipeline import make_pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.neighbors import KNeighborsClassifier
from sklearn.tree import DecisionTreeClassifier
from sklearn.naive_bayes import GaussianNB
knn = make_pipeline(StandardScaler(),
                    KNeighborsClassifier())
tree = DecisionTreeClassifier(random_state=0)
cands = {"kNN": knn, "tree": tree,
         "GaussianNB": GaussianNB()}
for name, m in cands.items():
    s = cross_val_score(m, X_tr, y_tr, cv=5)
    print(name, round(s.mean(), 3), round(s.std(), 3))

kNN 0.969 0.004
tree 0.837 0.024
GaussianNB 0.834 0.018

Step 5: tune the best candidate

Try several k, judged by cross-validation · k = 1 has the best mean here · But all values are within about 0.004 · Such small differences are mostly noise

for k in [1, 3, 5, 7, 9]:
    m = make_pipeline(StandardScaler(),
                      KNeighborsClassifier(n_neighbors=k))
    print(k, round(cross_val_score(m, X_tr, y_tr, cv=5).mean(), 3))

1 0.973
3 0.969
5 0.969
7 0.97
9 0.971

Step 6: test once

from sklearn.metrics import recall_score
final = make_pipeline(StandardScaler(),
                      KNeighborsClassifier(n_neighbors=1))
final.fit(X_tr, y_tr)
pred = final.predict(X_te)
print(round(final.score(X_te, y_te), 3))
rec = recall_score(y_te, pred, average=None)
print(rec.round(2))

0.967
[1.   0.98 0.98 0.93 0.98 0.98 1.   1.   0.95 0.87]

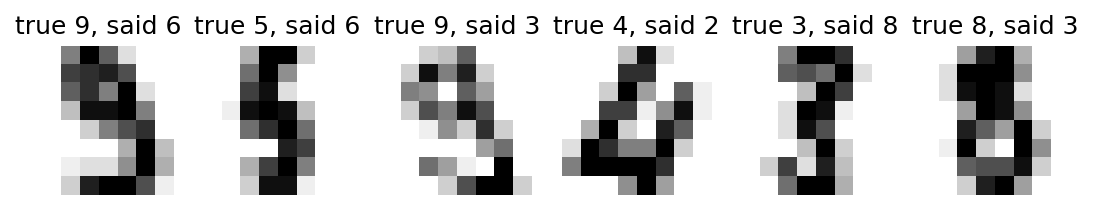

Step 6 (continued): look at the mistakes

Looking at errors often teaches more than the score. Would you have read these correctly?

wrong = np.where(pred != y_te)[0][:6]
imgs = X_te.reshape(-1, 8, 8)
fig, axes = plt.subplots(1, 6, figsize=(9, 2.2))
for ax, i in zip(axes, wrong):
    ax.imshow(imgs[i], cmap="gray_r")
    ax.set_title(f"true {y_te[i]}, said {pred[i]}")
    ax.axis("off")
plt.show()

Step 6 (continued): look at the mistakes: the result

Step 7: the one-page report

Homework P3

Due before Lecture 14 · [date]
